CWDM/DWDM Power Meter OCPM-18 & ODPM-48


CWDM/DWDM Power Meter OCPM-18 & ODPM-48

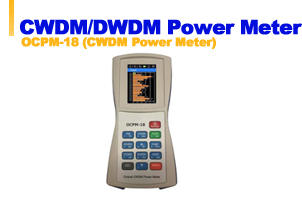

Parameter Typical
Wavelength Range 1270 ~ 1610 nm
Number of Channels 18
Measuring Wavelength (nm) 1270/1290/1310/1330/1350/1370/1390/1410/1430
1450/1470/1490/1510/1530/1550/1570/1590/1610
Wavelength resolution 20nm
Dynamic range + 10dBm to -40dBm
Absolute accuracy < ¡¾0.5 dB
Power resolution 0.01 dB
Units dBm / dB
Power supply Rechargeable Lithium-Polymer Battery
Optical interface SC/PC (standard), FC, LC, ST available
Guaranteed time of Operating 600 min (when fully charged)
Operating Temperature 0 ~ +50 ¡É
Dimension 78 x 155 x 35 mm
Weight 250g

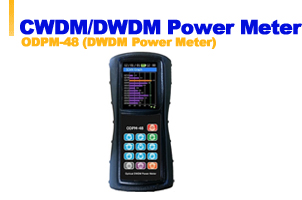

Parameter Typical
Channel Spacing DWDM 100GHz (according to ITU-T)
Number of Channels 48
Channel Frequencies (THz) frequencies 196.3 ~ 191.6 (1527.21nm ~ 1564.68nm)
Range of Display + 10dBm to -40dBm
Absolute accuracy < ¡¾1.0 dB@ -30dBm
Resolution 0.01 dB
Measuring Units dBm / dB
Power supply Rechargeable Lithium-Polymer Battery
Optical interface SC/PC (standard), FC, LC, ST available
Guaranteed time of Operating 420 min (when fully charged)
Operating Temperature -20 ~ +55 ¡É
Dimension 78 x 155 x 35 mm
Weight 250g
