Special Features
● Check unused ONT line regardless of ONT power Off
● Easy to check at FTTH Distribution Box (Splitter Node)
● No need to visit to subscriber's home
● No breakable (pass through) while check
● Indicate signal presence or absence (live or dead line)
● Optical power measurement of ONT signal in burst mode
● General power meter for 1310/1490/1550nm in CW mode
|
Specification |

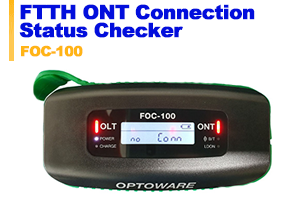

| Model |
FOC -100 |
| LD Wavelength |
1310nm |
| Calibrated Wavelength |
1310nm Burst, 1310, 1490, 1550nm |
| Measurement Range |
CW -40dBm ~ 10dBm Burst -30dBm ~ 10dBm |
| ONT Line Indicate |
Conn (ONT Power On or Off),
no Conn (No ONT or Cable Cut) |
| Accuracy (CW) |
+/-0.5dB @-20dBm |
| Resolution |
0.01dB |
| Return Loss Accuracy |
+/-1.0dB |
| Fiber type |
Singlemode 9/125um |
| Measurement unit |
dBm, nm |
| Adapter type |
FC/APC |
| Display |
LCD (with LED backlight),
2 color LED (ONT Connection Indicator) |
| Battery |
3.7V rechargeable Lithium Ion Battery |
| Battery Life |
3 hours (continuous usage) |
| Charging and Charging Time |
micro USB power cable, 1 hour |
| Dimension and Weight |
128.2 (W) x 66.2 (H) x 30 (D) mm, 150g |
|
|
|
|
 |
 |
 |
| |
 |
 |
| |
 |
 |

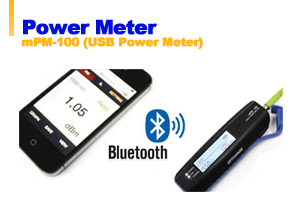

[Please install mPM-100 Android App in Google Play Store direct.] |
|
|
| |
| |
 |
| Model |
mPM-100 |
| Calibrated Wavelength (nm) |
mPM-100-7
mPM-100-5 |
850, 980, 1300, 1310, 1490, 1550, 1625
850, 1300, 1310, 1490, 1550 |
| Measurement Range |
-60dBm ~ 10dBm |
| Accuracy |
+/-0.5dB @-20dBm |
| Resolution |
0.01dB |
| Display unit |
dBm, nm |
| Adapter type |
Universal 2.5mm Adapter for SC,FC,ST,E2000 |
| Display |
LCD (with LED backlight), 3 LED indicators |
| Battery |
SC/PC (standard) or SC/APC or FC/PC or FC/APC |
| Operation Mode |
Power Meter / Insertion Loss Meter |
| Photodetector type |
InGaAs |
| Display |
2.1 inch LCD (with LED backlight) |
| Battery |
3.7V Rechargeable Lithium Ion Polymer Battery |
| Battery Life |
3 hours (continuous usage) |
| Data Storage |
100 measurements |
| External interface |
micro USB 2.0 |
| Dimension |
102 (W) x 32 (H) x 24 (D) mm |
| Weight |
70g |
|
|
|
|

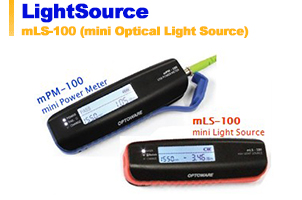

| Model |
mLS-100 |
| Calibrated Wavelength (nm) |
mLS-100-35
mLS-100-83 |
1310nm and 1550nm for Single-mode
850nm and 1300nm for Multi-mode |
| LD Type |
FP-LD |
| Output Optical Power Range |
0dBm ~ -40dBm |
| Fiber Type |
Single-mode or Multi-mode |
| Spectral width (rms) |
<5nm |
| Stability |
±0.02dB(15minutes) @ 23±3℃ |
| Adapter type |
Universal 2.5mm Adapter for SC,FC,ST,E2000
(Universal 1.25mm Adapter could be added optionally.) |
| Tunable range |
40dB |
| Display unit |
nm, dBm |
| Display |
LCD (with LED backlight), 3 LED indicators |
| Battery |
3.7V Rechargeable Lithium Ion Polymer Battery |
| Battery Life |
3 hours (continuous usage) |
| Battery Life |
3 hours (continuous usage) |
| Charging Time |
1hr |
| External interface |
USB 2.0, Bluetooth |
| Dimension |
32 (H) x 102 (W) x 24 (D) mm |
| Weight |
70g |
|
|
|
|

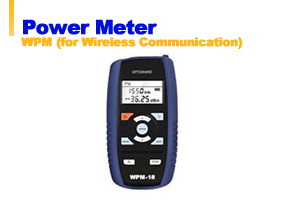

| Parameter |
WPM-18 (or WPM-162) |
| Wavelength (nm) for Demux1 |
1270/1290/1310/1330/1350/1370/1390/1410/1430
1450/1470/1490/1510/1530/1550/1570/1590/1610 |
| Operation Mode |
Wavelength Power Meter / Insertion Loss Meter |
| Measurement Range |
-40dBm ~ 10dBm |
| Accuracy |
+/-0.5dB @-20dBm |
| Resolution |
0.01dB |
| Unit |
dBm, dB, nm |
| Fiber type |
Singlemode 9/125um |
| Optical Interface |
SC/PC (standard) or SC/APC or FC/PC or FC/APC |
| Photodetector type |
InGaAs |
| Display |
LCD (with LED backlight) |
| Battery |
3.7V Rechargeable Lithium Ion Battery |
| Battery Life |
25 hours (continuous usage) |
| Data Storage |
100/1800 measurements per each wavelength |
| Operating Temperature (Humidity) |
-10 ~ +50 ℃ (0 ~ 90%) |
| Dimension |
138 (H) x 73 (W) x 30 (D) mm |
| Weight |
205g |
|
|
|
| |
| 1. Demux : WPM could be measured in demux side only (just for individual wavelength only). |
| 2. WPM-16 : Excluded 1370nm and 1390nm from WPM-18. |
| |
|
|
|

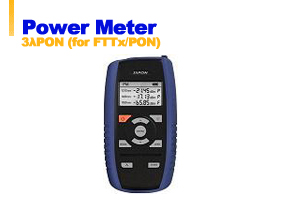

| Parameter |
3λPON |
| PON Wavelength |
ONU: 1310nm/Upstream
OLT: 1490nm/1550nm/Downstream |
| Spectral Passband |
1310+/-50nm (1260~1360nm)
1490+/-10nm (1480~1500nm), 1550+/-10nm (1540~1560nm) |
| Measurement Range |
-50dBm ~ 10dBm |
| Accuracy |
+/-0.5dB @-20dBm |
| Resolution |
0.01dB |
| Unit |
dBm, dB, nm |
| Fiber type |
Singlemode 9/125um |
| Optical Interface |
SC/PC (standard) or SC/APC or FC/PC or FC/APC |
| Operation Mode |
Power Meter / Insertion Loss Meter |
| Photodetector type |
InGaAs |
| Display |
2.1 inch LCD (with LED backlight) |
| Battery |
3.7V Rechargeable Lithium Ion Battery |
| Battery Life |
25 hours (continuous usage) |
| Data Storage |
300 measurements |
| Operating Temperature (Humidity) |
-10 ~ +50 ℃ (0 ~ 90%) |
| Dimension |
138 (H) x 73 (W) x 30 (D) mm |
| Weight |
205g |
|
|
|
|
|
|
